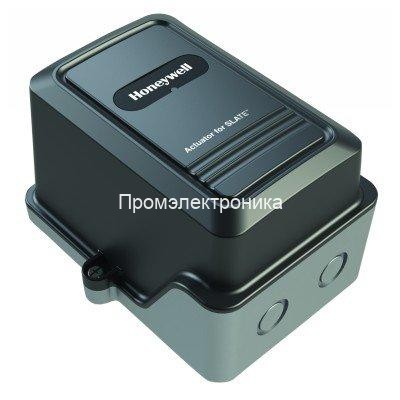

Honeywell R8001M1150

Honeywell R8001M1150 - промышленный сервопривод для управления воздушными и газовыми заслонками на газовых горелках

Product Specifications

Application

150 in lb actuator used with SLATE Fuel Air Ratio Control Module in NEMA 1

Temperature Range (F)

-18°F to +158°F

Temperature Range (C)

-28°C to +70°C

Used With

R8001C6001/U SLATE Fuel Air Ratio Control Module

Comments

This actuator is safety certified for use of modulating fuel/air valves when used with the SLATE A/F module only

Item Type

Product

Approvals, Underwriters Laboratories Inc.

Listed, File: UL 1998, UL353

Approvals, Canadian Standards Association

FM/FMC- ANSI/ISA 61010-1 Safety Requirements for Electrical Equipment

Operating Humidity Range (% RH)

0 to 99% non condensing

Voltage

24 VDC

Shipping and Storage Temperature Range (F)

-40°F to +176°F

Shipping and Storage Temperature Range (C)

-40°C to +80°C

Approvals, CE

Compliance with European CE requirements; EMC Directive 2004/108/EC; Low Voltage Directive 2006/95/EC

Required Components

R8001A1001/U; R8001C6001/U

Vibration

Vibration sinusoidal: 5 Hz - 30 Hz, Amplitude: 0.012mil pk/pk75 mm, Vibration sinusoidal: 30 Hz – 300 Hz at 0.6G, Endurance: 1.1G for 2 hours at resonant frequencies

Approvals, Factory Mutual

ANSI/ISA 61010-1 Safety Requirements for Electrical Equipment (North America); for Measurement Control, and Laboratory, (UK- European Notified Body)

Enclosure Rating

NEMA 1, IP10

Weight (oz)

54

Weight (g)

1360.7
